Z1830 Deep Sump Industrial Floor Drain (-12B and -12S)
Z1830 Deep Sump Industrial Floor Drain (-12B and -12S)
    Zurn

    Z1830 Deep Sump Industrial Floor Drain (-12B and -12S)

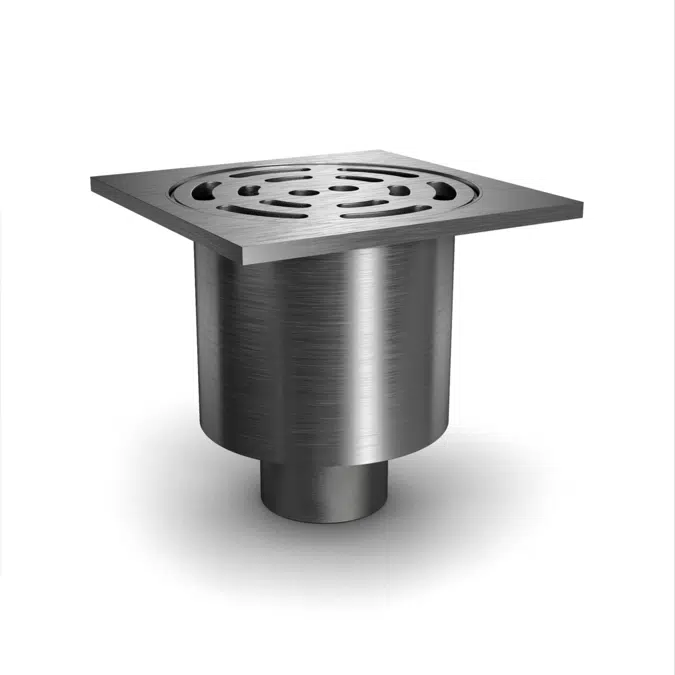

    Z1830 12" Stainless Steel Industrial Deep Sump Sanitary Floor Drain that features a loose set heavy-duty slotted grate with finger holes and removable sediment bucket.

    • Industrial sanitary floor drain with deep body, and heavy-duty slotted grate with finger holes
    • Comes standard with perforated removable sediment bucket with lift handle
    • Anchor tabs that help stabilize during the pre-pour
    • Comes standard with bead blasted finish
    • Drain meets US FDA standards for corrosion resistance
    • EZLock Magnetic Lock System available as an option
    • Available in both round & square top and 304SS & 316SS

    Z1830-12B | Z1830-12S

    规格
    • Engineering Specification: Z1830-12 12" x 12" x 8" Deep, 12 gauge, type 304 stainless steel, square industrial sanitary floor drain features loose set heavy-duty slotted grate (1/2 thick plate) with finger holes, 9/16 top frame, perforated removable sediment bucket with lift handle, pre-pour stabilizing anchor tabs, and bead blasted finish. Drain meets U.S. FDA standards for corrosion resistance.

    技术规格
    • 唯一参考z1830
    • 产品系列Drains (Wastes)
    • 产品组Z1800 Series
    • 类型对象(单个对象)
    • 发布日期2023-03-21
    • 版本号1
    • 高度 (inch)11
    • 宽度 (inch)12
    • 深度 (inch)12
    相关
    • 主材料不锈钢
    • 设计国家/地区美国
    分类
    • BIMobject 类别管道 - 排水系统
    • UNSPSC 名称Stainless steel grating
    • UNSPSC 代码30103202
    • Uniclass 2015 代码Pr_25_30_30
    • Uniclass 2015 说明Floor plates, gratings and edgings
    • CSI MasterFormat 2014 代码22 13 19.13
    • CSI MasterFormat 2014 标题Sanitary Drains
    • OmniClass 编号23-31 27 00
    • OmniClass 标题Floor Drains
    • CSI UniFormat II 代码D2030
    • CSI UniFormat II 标题Sanitary Waste
