4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System
4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System

    4-1/4" x 37" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System

    3.0 out of 5 stars3.0(10 reviews)

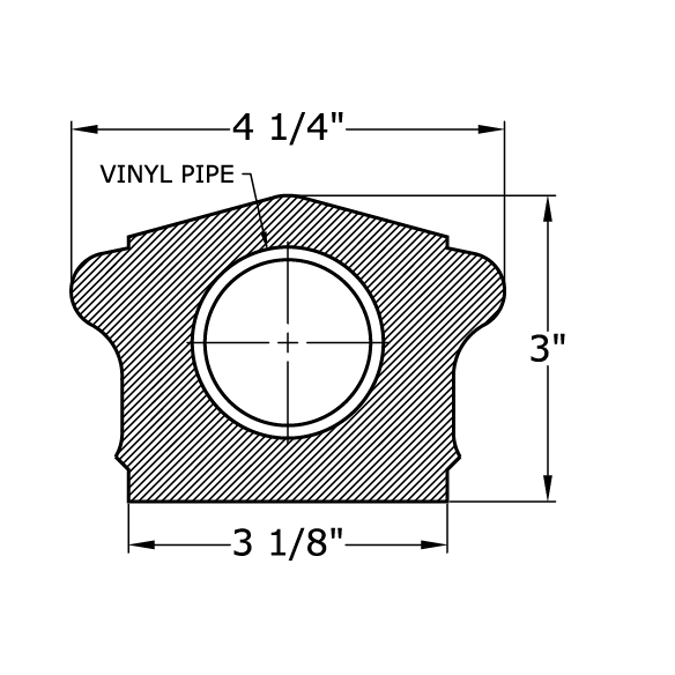

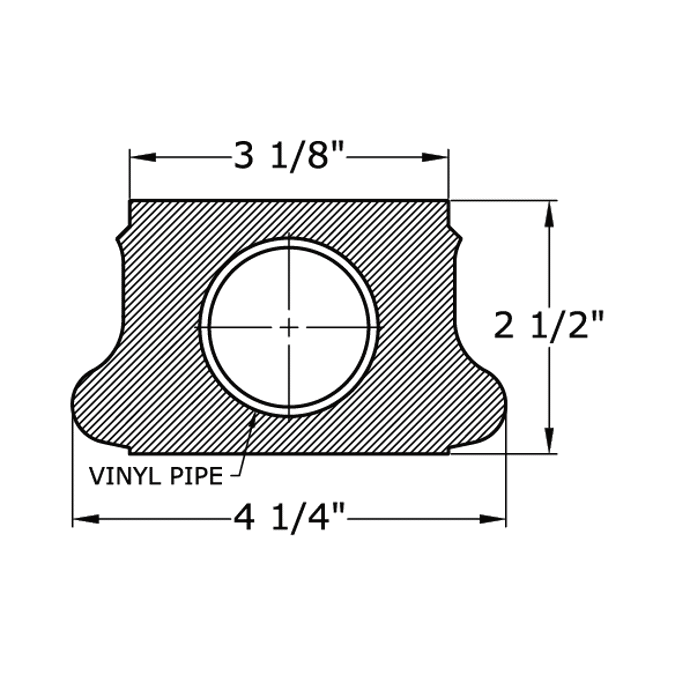

    The first dimension is the width of the rails and the 2nd dimension is the height of the railing system, with the posts being taller and available as paneled rather than plain. Each system has roughly a 4" support block underneath the bottom rail, which can be cut shorter to achieve shorter system heights.

    Royal Corinthian manufactures 3 structural balustrade systems made from composite materials that will last for generations. Our balustrades, which are comprised of balusters or spindles, top/bottom rails, newel posts and caps, decorative finials, and installation hardware, are available in RoyalCast™ composite fiberglass, RoyalStone™ polymer stone, and RoyalThane high density polyurethane. Each of our systems has been independently tested by engineering firms and exceeds commercial and residential building code requirements for a structural balustrade. All of our balustrade systems are lightweight systems when compared to natural stone but some are significantly lighter than others. We are the only manufacturer that offers all 3 materials in the same styles so the same project can use our RoyalStone balustrades on the front porch and our lightweight polyurethane system on a rooftop that has weight restrictions.
    规格
    • RoyalCast™ Fiberglass RoyalStone™
      Synthetic Stone
      RoyalThane™
      polyurethane
      Best Application Paintable, Rubust, Structural Prefinished, Robust, Structural Paintable, Lightweight, Structural
      Factory Finish (Standard) Paint-Grade Gray 6 Colors, 3 Textures Paint-Grade Primed White
      Factory Finish (Options) Paint-Grade Only Unlimited Custom Colors Paint-Grade Only
      Price Comparison $ $$ $
      On-Site Prep Work Sand, Predrill, Prime, And Paint Predrill Predrill And Paint
      Styles All All All
      System Widths Up To 10" Up To 10" Up To 12"
      System Heights Up To 51" Up To 51" Up To 51"
      Longest Rail Span Up To 20' Up To 20' Up To 12'
      Weight (Per Lineal Foot) *20 To 100 Lbs *20 To 100 Lbs 5 To 40 Lbs
      Warranty Limited Lifetime Limited Lifetime Limited Lifetime
      Advantages Structural And Versatile Prefinished And Structural Lightweight And Structural
      Structural Yes Yes Yes
      Customizable Yes Yes Yes
      Fiberglass Content 1-3% None, Unless Requested None
      Filler Calcium Carbonate/ATH/Prolite Calcium Carbonate/ATH/Prolite None
      Fire Rating Available: Class A Available: Class A Available: Class A
      LEED Points Available Available Available
    技术规格
    • 唯一参考balustrades-0425_B7427-railing-system
    • 产品系列Balustrade
    • 产品组0425-B7427 Railing System
    • 类型对象(单个对象)
    • 发布日期2022-11-29
    • 版本号1
    相关
    • 设计国家/地区美国
    • 制造国家/地区美国
    分类
    • BIMobject 类别建筑 - 栏杆
    • IFC 分类栏杆
    • Uniclass 2015 代码Ss_25_15_60_05
    • Uniclass 2015 说明Balustrade and guarding systems
    • OmniClass 编号23-17 25 11 11 17
    • OmniClass 标题Railing
