Z5340 Wall Hung Lavatory

Z5340 Wall Hung Lavatory

Z5340 Wall Hung Lavatory

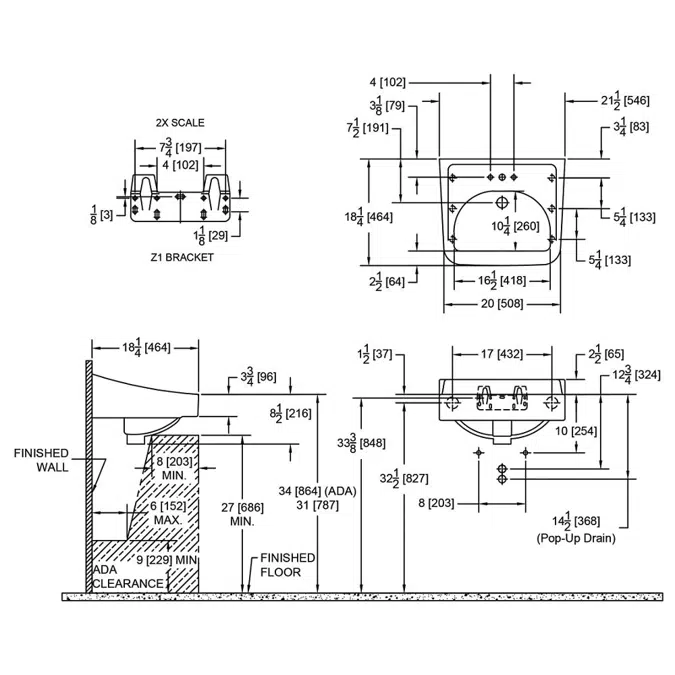

20” x 18” vitreous china wall hung lavatory with 8” center faucet hole. Provided with hanger plate and holes for concealed arm carrier systems. (Not available with the -LS or -RS)

Compliance:

ADA compliant, Massachusetts Approved, ASME A112.19.2, CSA® B45.1, cUPC®

Features:

20" x 18" wall hung lavatory
Wall hung lavatory with front overflow
For use with concealed arm carrier systems
Faucet holes for single, 4", or 8" centers
3-year limited warranty

Keywords: zurn z5340, z5344, zurn z5344, ADA wall hung lavatory, zurn sink, zurn lav carrier, ADA wall hung sink requirements, zurn lavatory carrier, ADA lavatory

Tekniske spesifikasjoner

Unik ref.z5340
ProduktfamilieWall Hung Lavatories - Sinks
ProduktgruppeVitreous China
TypeObject (single object)
Utgivelsesdato2010-10-21
Utgavenummer2
Høyde (tommer)11
Bredde (tommer)21.5
Dybde (tommer)18.25

Lenker

Produktets nettadressehttps://www.zurn.com/products/finish-plumbing/fixtures/lavatories/z5340
Teknisk beskrivelsehttps://files.zurn.com/spec-sheets/z5340.pdf

Relatert

HovedmaterialeVitreous china
Designet iUnited States
Nettovekt (pund)41

Klassifisering

BIMobject kategoriSanitary - Wash basins
IFC-klassifiseringSanitary Terminal
ETIM-kodeEC011550
ETIM-navnWashbasin
Uniclass 2015 kodeSs_40_15_75_94
Uniclass 2015 beskrivelseWash basin systems
CSI MasterFormat 2014 kode22 42 16.16
CSI MasterFormat 2014 tittelCommercial Sinks
OmniClass-nummer23-31 13 00
OmniClass-tittelSinks
