URSA XPS N W E grandes plaques FR

The URSA XPS range is for people that are looking an easy to handle and install insulation with a high level mechanical resistance in compression. The range is specifically recommended for some applications: heating floors, flat roofs, insulation by the outside, green roofs,... The major advantages of URSA XPS are: - High thermal performance, - Exceptional mechanical resistance, - Perfect resistance to water and humidity, - Easy to handle and to cut, - Good resistant to the freeze-thaw cycles

Spesifikasjon

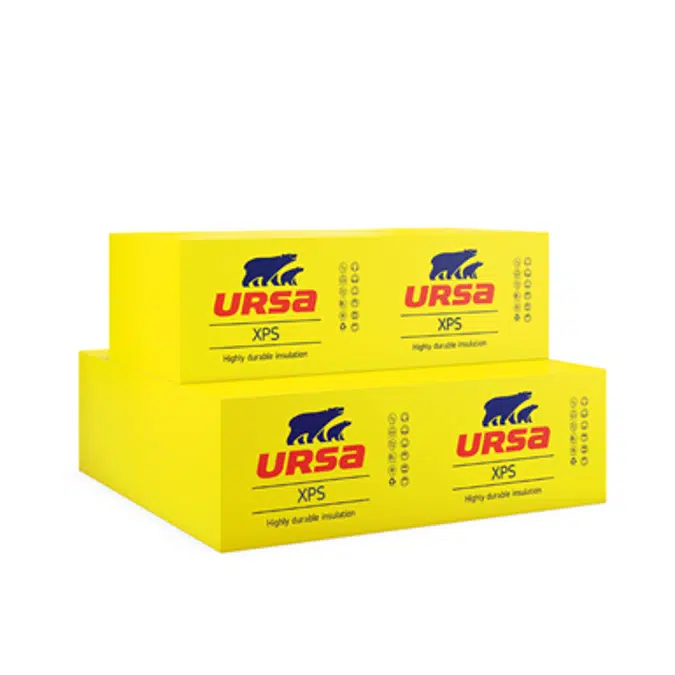

URSA XPS N W E Grandes Plaques is a smooth surfaced type N (cells containing air) extruded polystyrene board with leather and interlocking edges on all sides. The product has the following dimensions and R value: thickness 30, 40, 50, 60, 80, 100 mm, length 2500 mm, width 600 mm with a R value of 0.90, 1.20, 1.50, 1.80, 2.20, 2.80 m².K/W. The product has the following certifications: CE according to NF EN 13164, ACERMI certificate n°07/083/452 and the performance declaration n°33XPSN2516111. The technical characteristics are: thermal conductivity (λD) = 0,036 W/(m.K), reaction to fire Euroclass = E, thickness tolerance = T1, compressive strength CS(10\Y) ≥ 250 kPa, dimensional stability DS(TH) ≤ 5%, deformation under load and temperature DLT(2) ≤ 5%, resistance at the perpendicular traction > 100 kPa and short-term water absorption rate for total immersion WL(T) ≤ 0,7%.

Tekniske spesifikasjoner
