Athletic Equipment Cantilever Rack

Athletic Equipment Storage Rack

This cantilevered rack efficiently stores basketballs, volleyballs, and other athletic equipment. This convenient shelving system can also store football shoulder pads and other athletic equipment.

Standard sizes
Widths: 30", 36", 48"
Depths: 15"

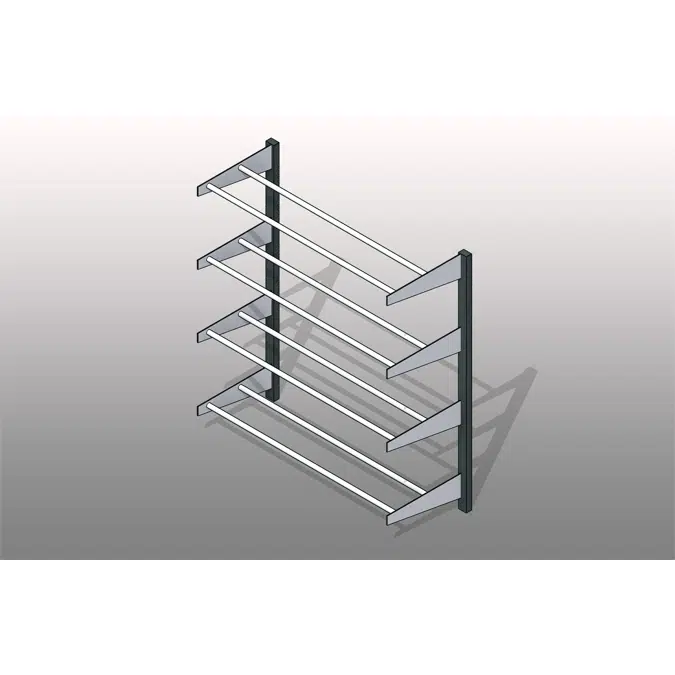

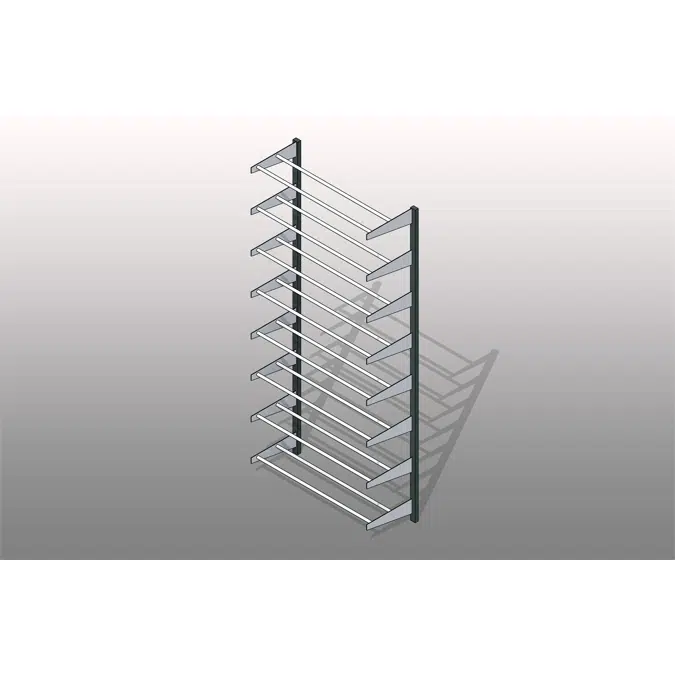

Heights: 42", 84'

Organize your gym or locker room with this flexible system
Open rail shelving design supports equipment while allowing for airflow, cutting down on odors
Rails can also be used to hang jerseys and other garments

To use this family, insert it into your project and use the align tool to connect the shelves to a wall. ENTER_Rail Width can be used to specify the width of the system. MODIFY_42" Height and MODIFY_84" height will make the system grow and add more shelves. This family does include pricing and approximate weights.

Spesifikasjon

Wall Posts
- Constructed from furniture-grade steel
- Posts measure 1 1/2" by 1"
- All posts are 42" in length. 84" high units with two 42" posts
- Finish with a high-quality black powder coat
- Wall mounting hardware is not included
Shelf Rails
- Constructed from 1/8" thick cold-rolled low carbon steel
- Shelf rails are adjustable on 1" centers
- 125 lbs. total weight capacity per shelf
- Finished with a high-quality powder coat in grey

Tekniske spesifikasjoner

Unik ref.SSG_Rack_Cantilever_Athletic_PCS
TypeObjekt (enkelt objekt)
Utgivelsesdato2023-06-17
Utgavenummer1
Dybde (tommer)15

Lenker

Produktets nettadressehttps://fetchbim.com/product/1284/ssg-rack-cantilever-athletic-pcs
Teknisk beskrivelsehttps://app.fetchbim.com/Family/e4f06283-8447-424f-a621-e67b83efd01f/File/PDF-SpecManual

Klassifisering

BIMobject kategoriMøbler - Hyller og lagring
IFC-klassifiseringMøbler
CSI MasterFormat 2014 kode10 56 29.26
CSI MasterFormat 2014 tittelCantilever Storage Racks
CSI UniFormat II kodeE2010
CSI UniFormat II tittelFixed Furnishings
