    • Superior acoustic performance
    • Industrial durability
    • Simple and quick installation system
    • Lightweight for easy handling
    • Unique roll-up design for compact storage and transportation
    • Double or triple up for noise ’hot spots‘
    • Ability to add branding or messages
    • Range of accessories available
    • Weatherproof – absorbs sound but not water
    • Fire retardant
    • 1 person can do the job of 2 or 3 people

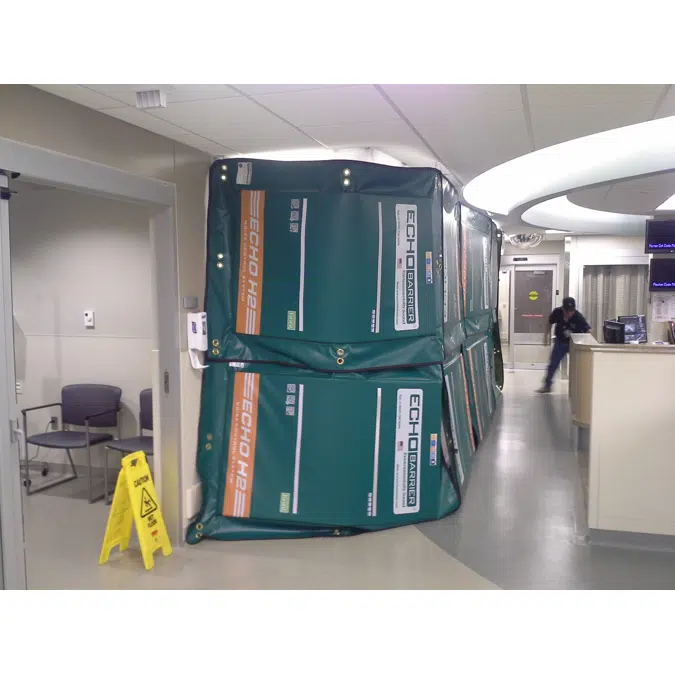

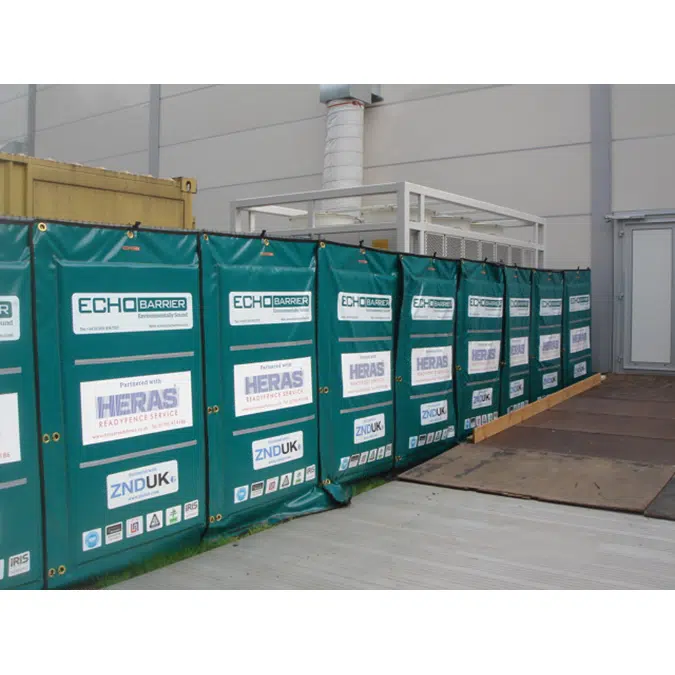

    Why is it all too often we see construction sites with fencing but no regard for sound issues created from the construction that is taking place? This is due to the fact that there has not been an efficient means of treating this type of noise that was cost effective until now.  Echo Barrier temporary fencing is a reusable, outdoor noise barrier. Designed to fit on all types of temporary fencing. Echo Barrier absorbs sound while remaining quick to install, light to carry and tough to last.

    BENEFITS: Echo Barrier can help reduce noise complaints, enhance your company reputation, extend site operating hours, reduce project timescales & costs, and improve working conditions.

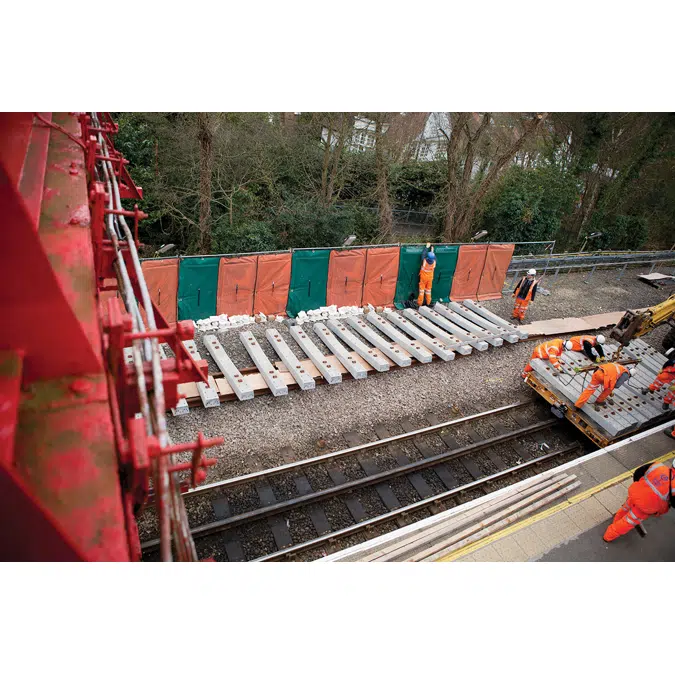

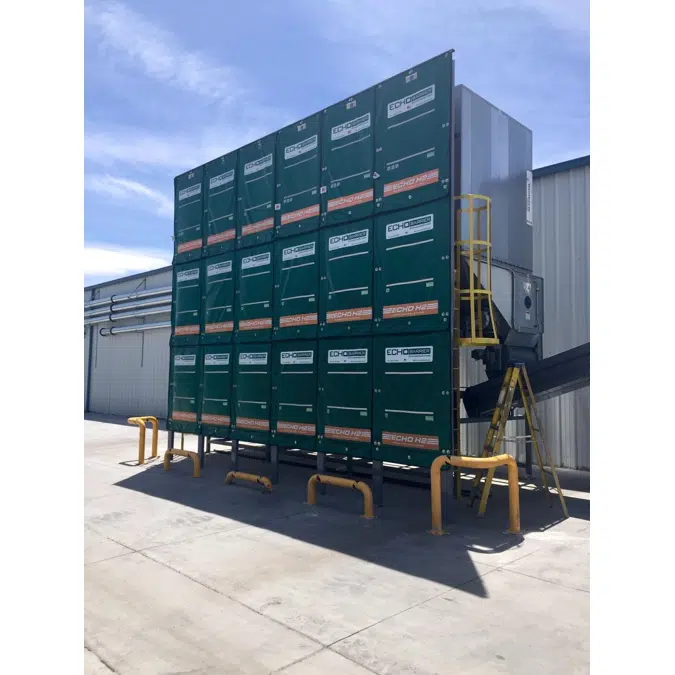

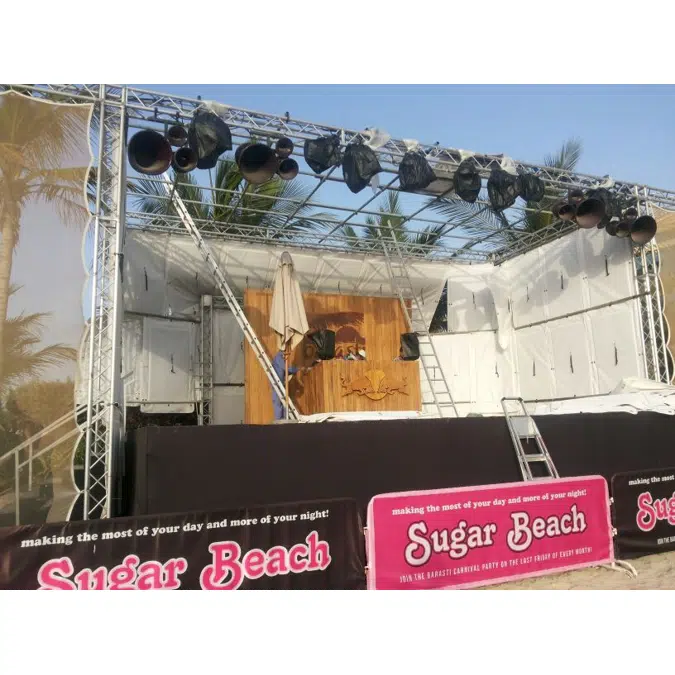

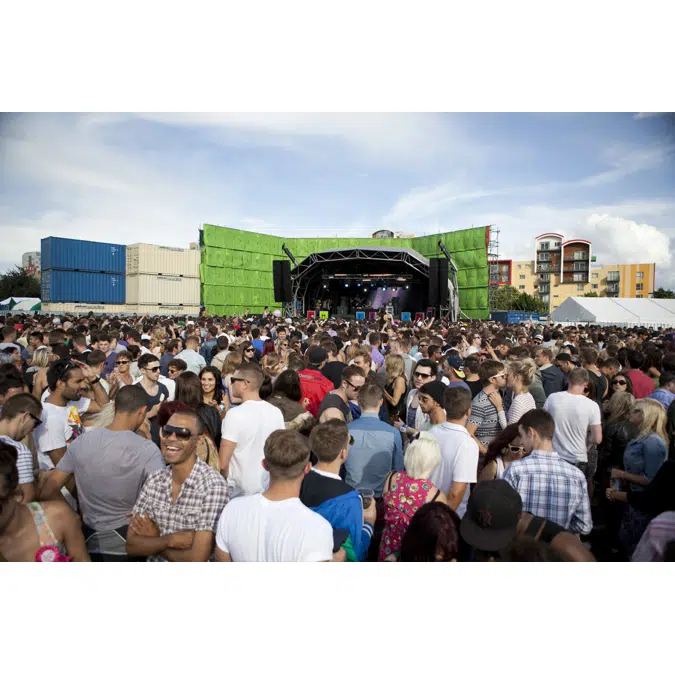

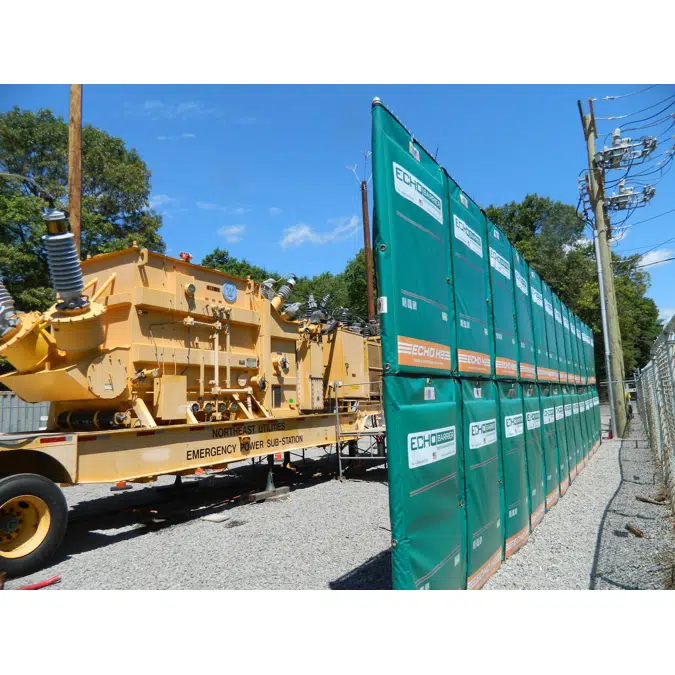

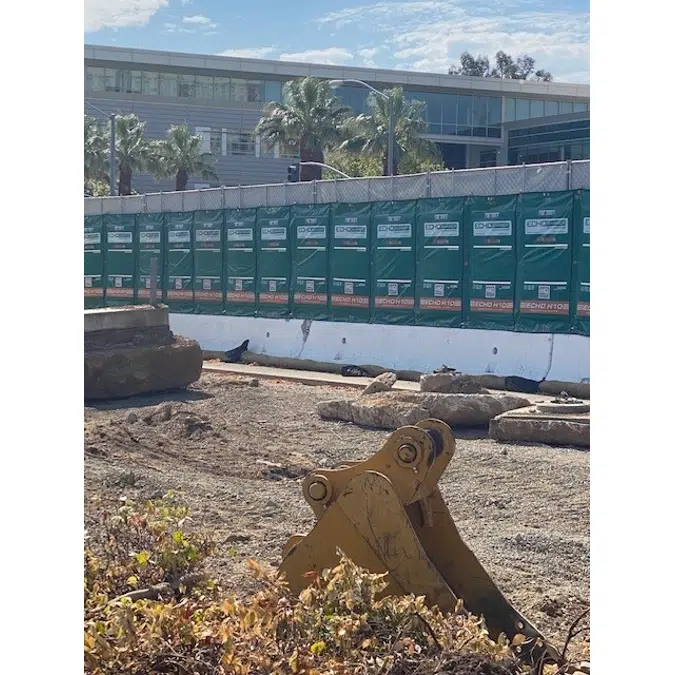

    APPLICATIONS: Echo Barrier works great for construction & demolition sites; rail maintenance & replacement; music, sports and other public events; road construction; utility/maintenance sites; loading and unloading areas; outdoor gun ranges.

    DIMENSIONS: 52.56" x 80.70"
    WEIGHT: 13 lbs.
    ACOUSTIC PERFORMANCE: 10-20dB noise reduction (greater if barrier is doubled up)
    INSTALLATION: The Echo Barrier is easily installed using our quick hook system and specially designed elastic ties.

    Spesifikasjon
    • SECTION 13 48 13

      Echo Barrier Sound Barrier/Absorber Panels

      PART 1 GENERAL

      1. SECTION INCLUDES
        1. Echo Barrier sound barrier/absorber panels and accessories for installation.
      2. REFERENCES
        1. American Society for Testing and Materials (ASTM)
          1. ASTM E90: Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements.
        2. International Organization of Standardization (ISO)
          1. ISO 354: Measurement of Sound Absorption in a Reverberation Room.
          2. BS 7837: Specification for Flammability Performance for Textiles Used in the Construction of Marquees and Similar Textile Structures.
      3. SUBMITTALS
        1. Product Data: Manufacturer’s data sheet and installation instructions.
        2. Samples: Submit, at minimum, a 4” x 4” sample for each type of specified acoustical panel.
        3. Test Reports: Upon request, submit certified test reports to verify specified product performance.
      4. QUALITY ASSURANCE
        1. Qualifications:
          1. Manufacturers: Provide panels from a single manufacturer.
          2. Installers: Utilize an installer having demonstrated experience on projects of comparable size and complexity.
        2. Performance Requirements:
          1. Flammability Characteristics: Acoustical panels to perform as specified when tested in accordance with BS 7837.
          2. Acoustical Characteristics: Acoustical panels to perform as specified when tested in accordance with ASTM C423 and ASTM E90.
      5. DELIVERY, STORAGE, AND HANDLING
        1. Storage and Handling Requirements:
          1. Handle panels carefully to avoid any damage.
          2. Store panels indoors in a clean, cool, dry place, and out of direct sunlight.
          3. Store panels in a space where the ambient temperature and humidity conditions are being maintained at the levels indicated for the project when occupied for its intended use.
      6. SITE CONDITIONS
        1. Ambient Conditions: Do not install panels under environmental conditions outside manufacturer’s recommended limits.
      7. WARRANTY
        1. Provide manufacturer’s written product warranty per Section 01 77 00 – Closeout Procedures.

      PART 2 PRODUCTS

      (Specifier Note: Red colored text below requires you to select an option before this specification can be completed. Options in red text are bound by parenthesis. Additional Echo Barrier information can be found on our website: www.acousticalsurfaces.com

      1. MANUFACTURERS
        1. Acoustical Surfaces, Inc., 123 Columbia Court N, Chaska, MN 55318.
          Phone: 952-448-5300. Fax: 952-448-2613. Website: www.acousticalsurfaces.com
      2. DESCRIPTION
        1. Product: Echo Barrier sound barrier/absorber panels by Acoustical Surfaces, Inc.
        2. Product Options:
          1. Panel Composition: Weatherproof PVC facing with sound-absorbent core made from
            recycled materials.
          2. Panel Thickness: Nominal 2”
          3. Size: 52.56” x 80.70”
          4. Finish: (Green) / (Black) / (White)
          5. Mounting Method: Grommets
        3. Product Performance:
          1. Acoustical Performance
            1. Noise Reduction Coefficient (NRC) per ASTM C423 – up to 0.65 depending on panel options and mounting configuration.
            2. Sound Transmission Class (STC) per ASTM E90 – up to 18 depending on panel options and mounting configuration.
          2. Flammability Performance
            1. Results when tested per BS 7837: Passed.
        4. ACCESSORIES
        5. Attachment hardware for panels as specified by manufacturer for installation.

      PART 3 EXECUTION

      1. INSTALLATION
      2. Comply with manufacturer’s instructions and recommendations for installation of acoustic panels and with industry standards.
      3. CLEANING
      4. Clean surfaces of panels per manufacturer’s instructions or recommendations.
      5. Remove and replace damaged or discolored material and material that cannot be properly cleaned.

      END OF SECTION

    Tekniske spesifikasjoner
    • Unik ref.acoustical-surfaces-echo-barrier
    • ProduktfamilieEngineering & Infrastructure
    • ProduktgruppeNoise Barriers
    • TypeObjekt (enkelt objekt)
    • Utgivelsesdato2013-08-23
    • Utgavenummer1
    • Høyde (tommer)80.7
    • Bredde (tommer)52.56
    • Dybde (tommer)2
    Relatert
    • Nettovekt (pund)16
    Klassifisering
    • BIMobject kategoriAnlegg og infrastruktur - Vei
    • Uniclass 2015 kodeAc_40_65_79
    • Uniclass 2015 beskrivelseSound controlling
    • CSI MasterFormat 2014 kode09 84 33
    • CSI MasterFormat 2014 tittelSound-Absorbing Wall Units
    • OmniClass-nummer23-15 13 19 35
    • OmniClass-tittelAcoustical Wall Treatment
    • CSI UniFormat II kodeB2010
    • CSI UniFormat II tittelExterior Walls
