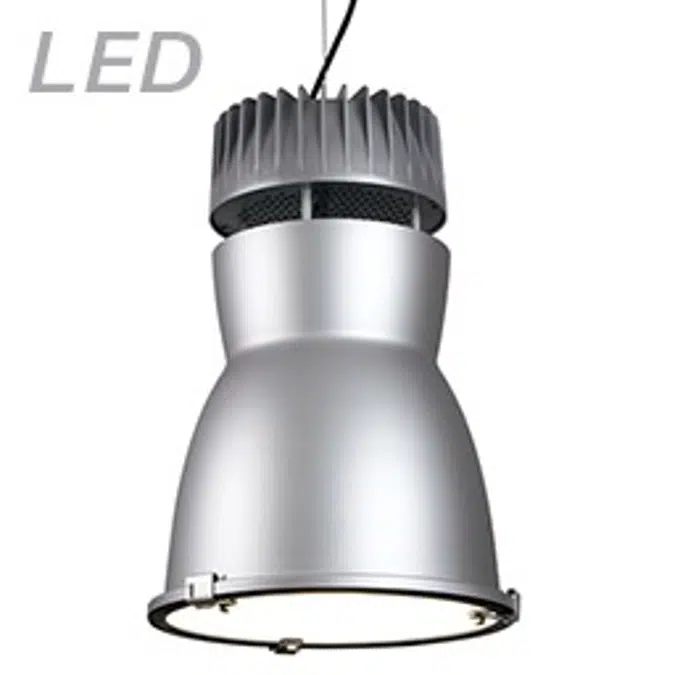

ROCKET I LED FROSTED LENS LOWBAY - IL7710
CONSTRUCTION
LENS
LED DRIVERS
LEDs
- Spun matte anodized .063 aluminum housing.
- Canopy mounts to standard J-boxes, suspends from aircraft cables with push button gliders.
- Standard mount is 6 ft. adjustable aircraft cable and power cord. Order XP for extra pendant length.
- Lens and component design provides maximum airflow for cool operation.
LENS
- Frosted 3/16” tempered, soda lime glass with 2” ventilation opening, silkscreen logo.
Secured with a rubber gasket, the lens is held in place by three positive-locking clamps.
LED DRIVERS
- Constant current, 0–10V, dimming to 10%, universal voltage driver.
- cU.L. listed for dry locations only.
- EM–emergency battery pack, which ignites LED array to 650 lumens for 90 minutes. Voltage must be specified.
LEDs
- Nichia Corp. chips, available in three white color temperatures:
W30 (3000º K), W35 (3500º K), and W40 (4000º K).
