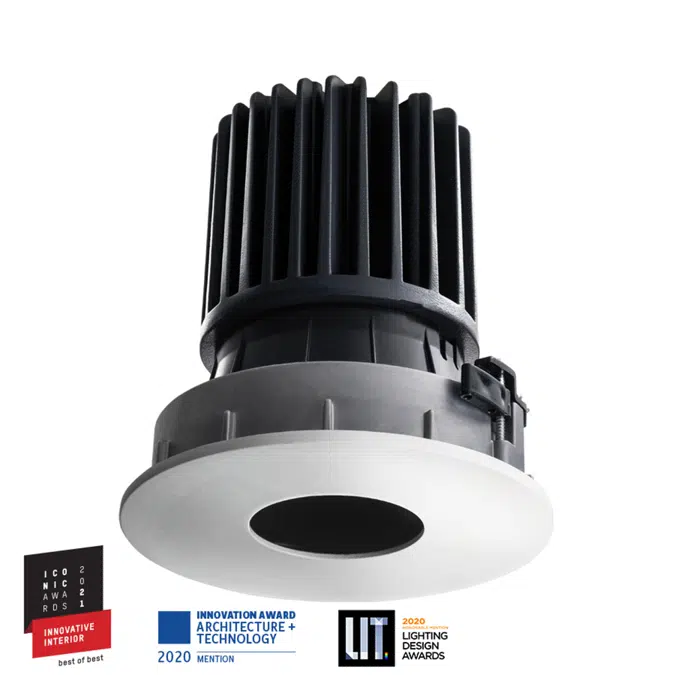

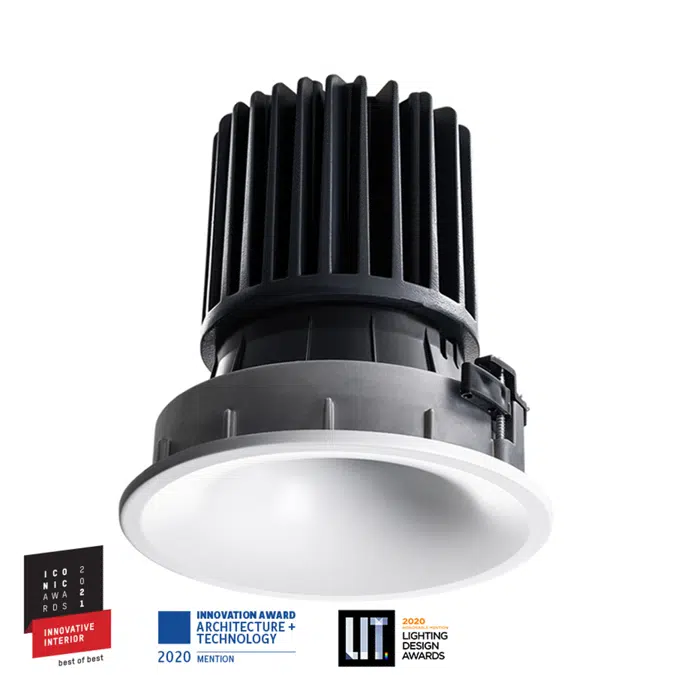

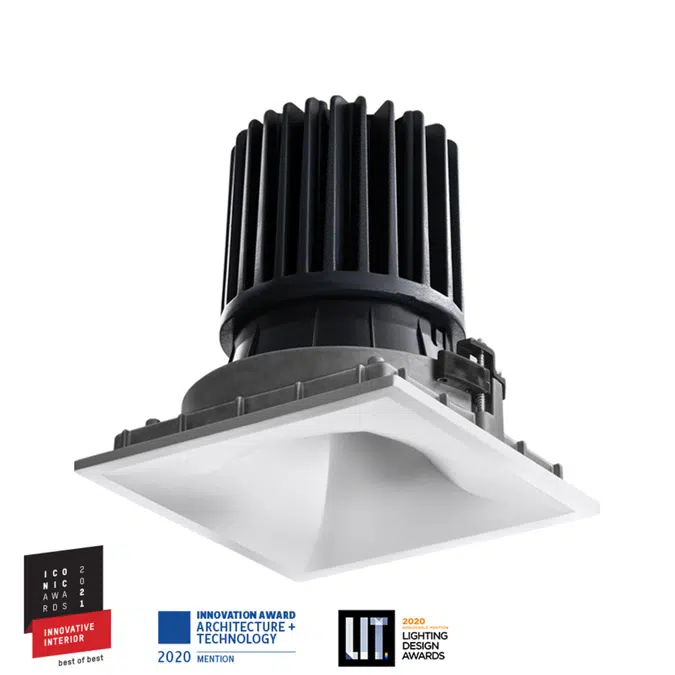

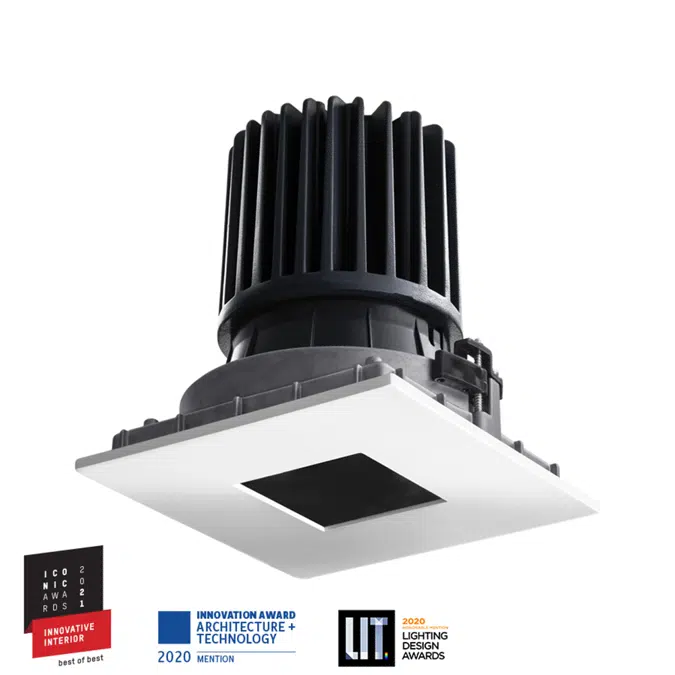

Combina D 4.0 - Ceiling Mounted Lighting

Recessed downlight for indoor applications
recessed (ceiling)
Power consumption: max 29W
Power supply: max 800mA
Lumen output at source: 2492 lm (3000K, 800mA, CRI >97), 2829 lm (3000K, 800mA, CRI >90)
Delivered lumen output: 2170 lm (3000K, 800mA, 41°, CRI >97), 2225 lm (3000K, 800mA, 41°, CRI >90)
1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 20°⁽²⁾, 29°⁽²⁾, 38°⁽²⁾: optical system consisting of a high-efficiency deep-set TIR lens
⁽²⁾ If you choose the deep cover, the optics change from 20° to 21°, from 29° to 30° and from 38° to 41°
CRI Colour Rendering Index: >90, >97
Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100, for excellent corrosion resistance, and flame-retardant Bayblend. Trim and cover made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion
RAL finish on request
power supply unit not included
Wiring: series
includes 2x0.30 m single-core PVC cables
Ingress protection: IP40, IP44 with filter
UGR <13 for versions with flat and shallow covers, UGR <19 for versions with deep cover
Operating temperature: 0°C — +45°C
Maximum device temperature: 50°C (Ta 25°C)
Appliance class: class III
Weight: 1250 gr
Dimensions: ø200 mm / 200x200 mm
Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012
Accessories: WGCC40A1F Round bezel, WGCC40A1T Round bezel, WGCC40A2F Square bezel, WGCC40A2T Square bezel, WHCC40A1 Honeycomb louvre, WHCC40A3 Honeycomb louvre, WRCC40R1D Diffuser filter, WRCC40R1T Transparent IP44 screen, WRCC40R1W Elliptical filter, WRCC40R3D Diffuser filter, WRCC40R3T Transparent IP44 screen, WRCC40R3W Elliptical filter, WZCC40108 Flat, round cover, WZCC4010E Flat, round cover, WZCC4010N Flat, round cover, WZCC4010Z Flat, round cover, WZCC40208 Flat, square cover, WZCC4020E Flat, square cover, WZCC4020N Flat, square cover, WZCC4020Z Flat, square cover, WZCC40308 Shallow, round cover, WZCC4030E Shallow, round cover, WZCC4030N Shallow, round cover, WZCC4030Z Shallow, round cover, WZCC40408 Shallow, square cover, WZCC4040E Shallow, square cover, WZCC4040N Shallow, square cover, WZCC4040Z Shallow, square cover, WZCC40508 Deep, round cover, WZCC4050E Deep, round cover, WZCC4050N Deep, round cover, WZCC4050Z Deep, round cover, WZCC40608 Deep, square cover, WZCC4060E Deep, square cover, WZCC4060N Deep, square cover, WZCC4060Z Deep, square cover
tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption
