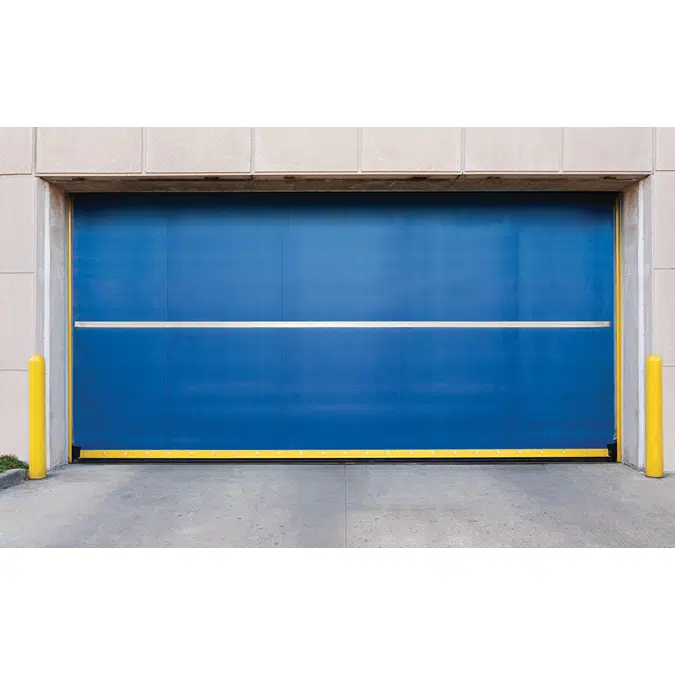

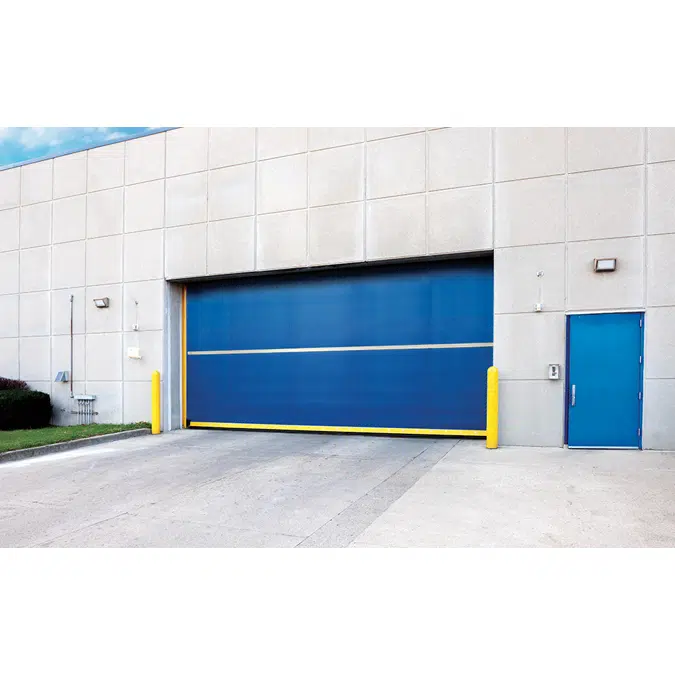

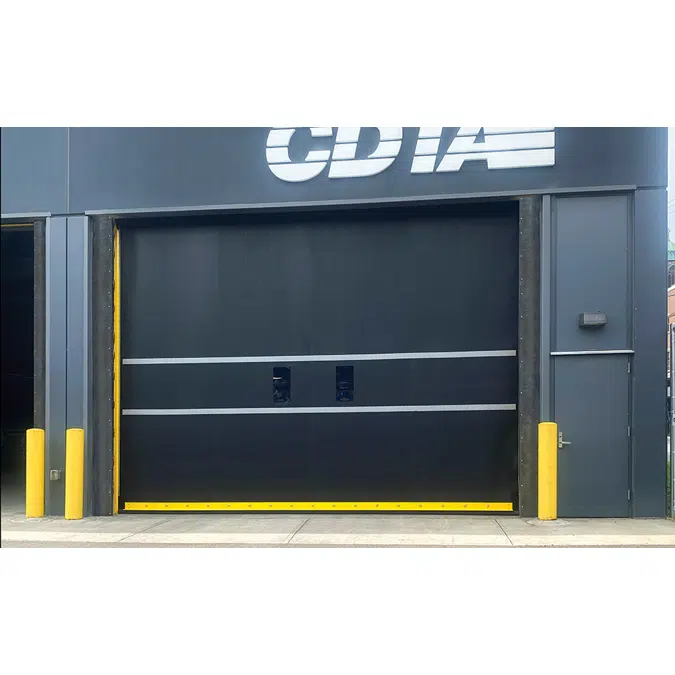

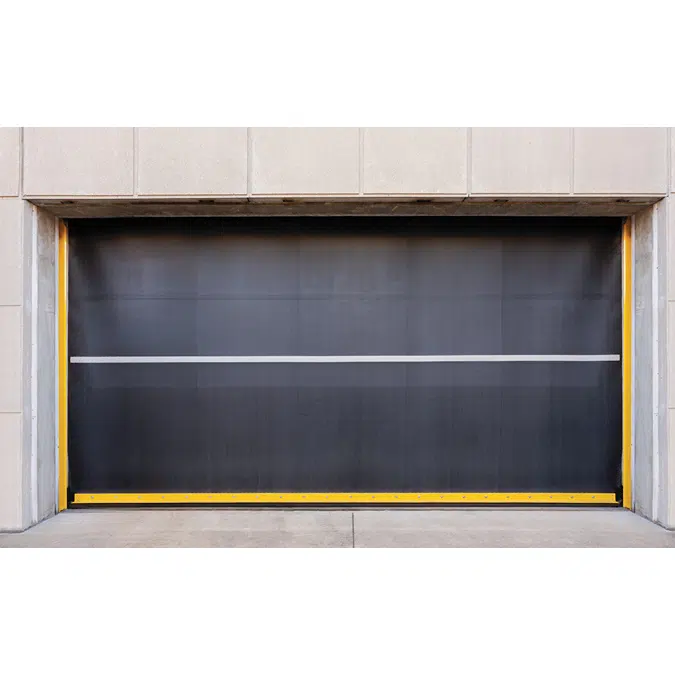

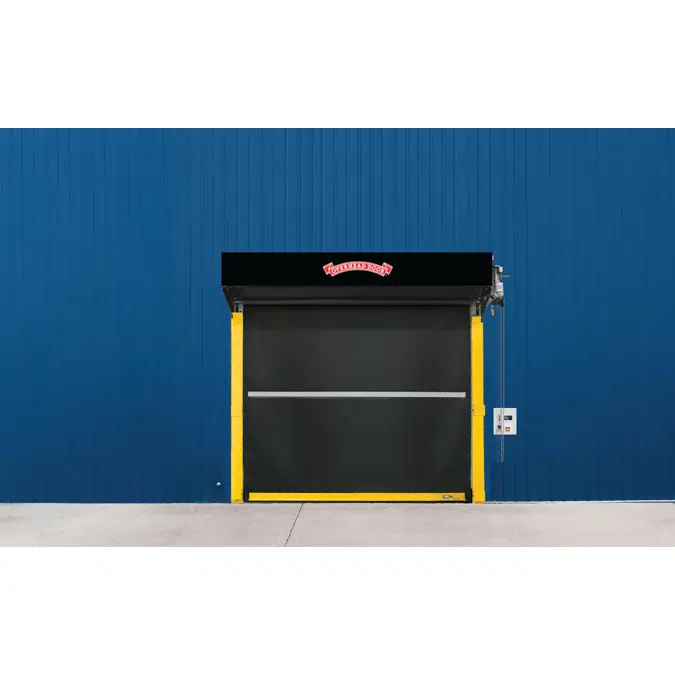

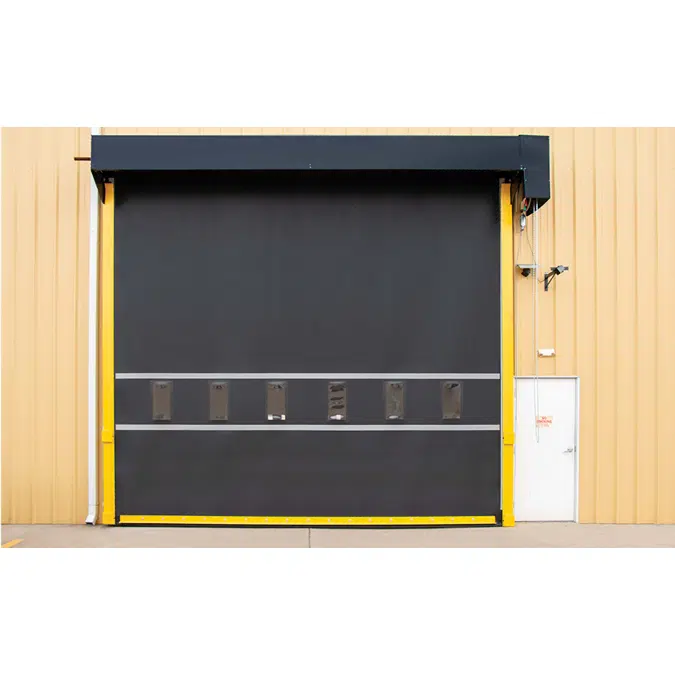

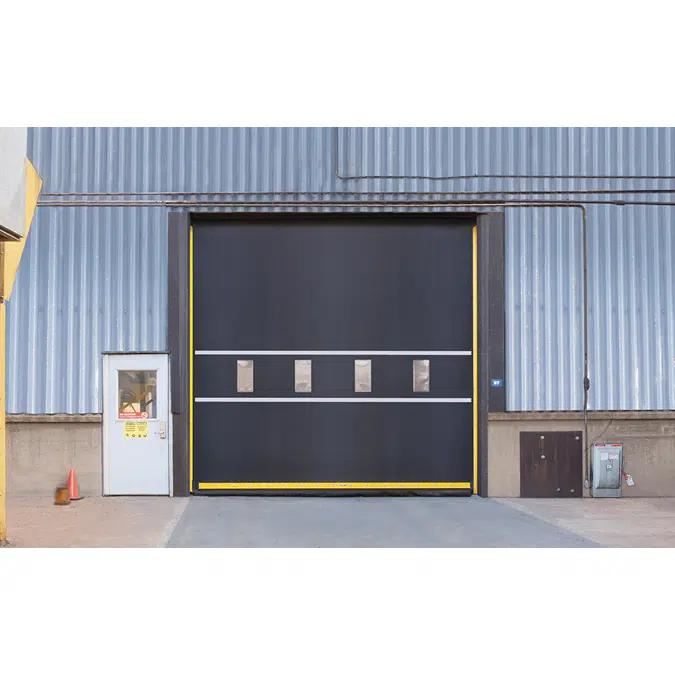

    Model 995LH

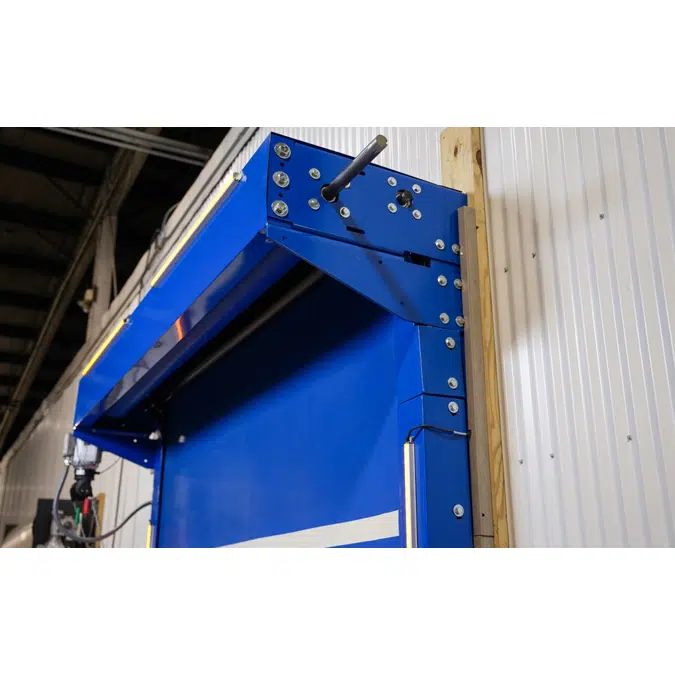

    RapidFlex® Model 995LH is a heavy-duty exterior high speed rubber door specially designed for applications with low headroom. Built for performance and reliability, this high-cycle door is engineered to keep your operations running smoothly with minimal maintenance. Its innovative springless design, smooth-start variable frequency drive, and durable direct-mounted gear system reduce wear and extend service life. This door features multi-reinforced Nitrile Butadiene Rubber (NBR) for exceptional strength and resistance to petrochemicals—perfect for demanding exterior environments. With a pre-installed header assembly, optional LED lighting, and a moisture-blocking hood, it's a smart, space-saving solution designed to perform.

    BIM objects are for general reference and should not be used for exact construction information. Please contact an Overhead Door Distributor when exact dimensions are required.

    Spécification
    • Product Specification

      Maximum Width 22'

      Maximum Height 10'

      Headroom

      • 12" for 8' to 14' wide doors
      • 13" for 15' to 18' wide doors
      • 15" for 19' to 22' wide doors

      Maximum Opening Speed Up to 30"/sec

      Maximum Closing Speed Up to 20"/sec

      Curtain Lock Yes

      Breakaway Self Reset† No

      Wind Load* Up to 27.0 psf

      Curtain Material 5 layers of NBR rubber with 4 layers of polyester weave

      Operation Direct drive motor and gearbox system with field changeable universal handing and door stop safety device

      Control Panel Variable frequency drive NEMA 4X cULus listed; Onboard self-diagnostic and service reminder; Built-in padlockable fused disconnect

      Detection Infrared sensors mounted in-plane to the door curtain at 4.5" and 50"-54" from floor

      Reversing Safety Edge cUR 325 recognized wireless reversing monitored edge sensor with adjustable impact detection

      Available Voltages 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH†

      (†Requires stand-alone mounted transformer)

      * Wind load is the ultimate pressure tested at door width of 19'.

      + Automatic reset not available with low headroom model.

      Warranty

      5-year Limited

    Spécifications techniques
    • Réference unique.high-speed-exterior-rubber-door-995lh
    • Famille de produitsCommercial Doors
    • Groupe de produitsHigh Speed Doors
    • TypeObject (single object)
    • Date de publication2025-05-08
    • Numéro d'édition1
    En rapport
    • Matériel principalRubber
    • Matériel secondaireSteel
    • Conçu enUnited States
    • Fabriqué enUnited States
    Classification
    • BIMobject CatégorieDoors - Industrial
    • Classification IFCDoor
    • Code CSI MasterFormat 201408 33 23.13
    • Titre CSI MasterFormat 2014Overhead Rapid Coiling Doors
    • Numéro OmniClass23-17 11 19 21
    • Titre OmniClassOverhead Composite Doors
