Penthouse - 4" Deep - 45 Degree J-Blade - Extruded Aluminum - EFJ-445-PH

Extruded Aluminum Penthouse
4" Deep - 45 Degree J-Blade

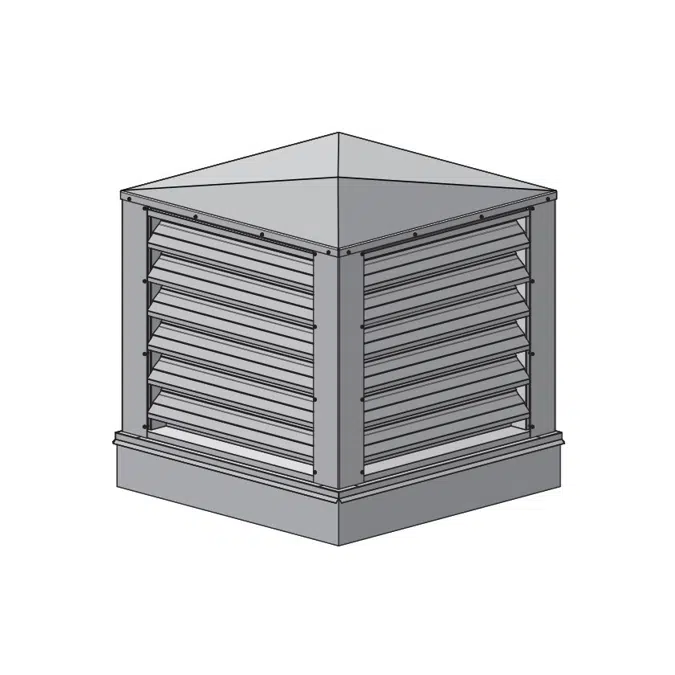

The EFJ-445-PH extruded aluminum penthouse is designed for intake and exhaust applications and protection against non wind-driven rain. The EFJ-445-PH serves frequently as a gravity ventilator, fan discharge cap, fresh air intake cap, sight shield or pressure relief ventilator.

Spécification

Standard Construction
Material: Mill finish 6063-T5 extruded aluminum.
Frames: 4" deep x 0.081" thick (102 x 2) channel.
Blades: 45^o x 0.081" (2) thick J-style.
Corner: Boxed
Roof: 0.081" (2) thick formed aluminum with anti-condensate roof under coating.
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.
Minimum Size: 12" x 12" (305 x 305), PH Throat 12" (305) high
Maximum Size:
Factory assembled: 48" x 48" (1219 x 1219) PH Throat
Field erected: 96" x 120" (2438 x 3048) PH Throat
Maximum Height: 48" (1219)
Design Load: 25 psf

Spécifications techniques

Réference unique.Penthouse-4-Deep-45-Degree-J-Blade-Extruded-Aluminum-EFJ-445-PH
Famille de produitsHVAC
Groupe de produitsLouvers and Penthouses
TypeObject (single object)
Date de publication2024-07-16
Numéro d'édition1

Liens

URL du produithttps://www.pottorff.com/product/details/206

Classification

BIMobject CatégorieHVAC - Mechanical Ventilation
Code Uniclass 2015EF_65_40
Description de l'Uniclass 2015Ventilation
Code CSI MasterFormat 201423 37 23.16
Titre CSI MasterFormat 2014HVAC Gravity Louvered-Penthouse Ventilators
Numéro OmniClass23-33 49 27
Titre OmniClassVentilators
