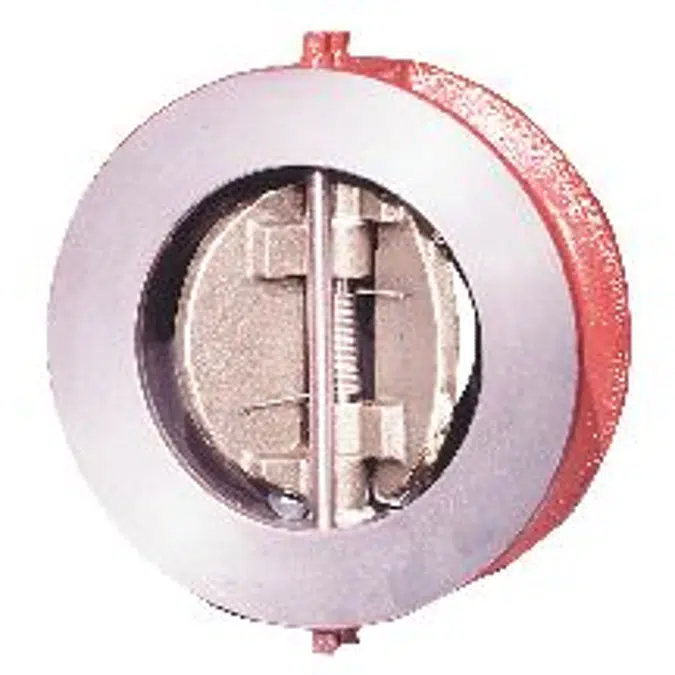

Cast Iron Wafer Check Valves - ICV-125-2-2-T

Series ICV-125-2-2-T Cast Iron Wafer Check Valves are used in commercial and industrial HVAC applications to prevent water hammer and reverse fluid flow in water lines. They feature a cast iron body with aluminum-bronze disc plates, EPDM seat, PTFE bearings, stainless steel hinge and stop pins, steel plug and eye bolt, and stainless steel springs. Maximum Pressure: 200psi (13.8 bar) CWP (non-shock).

Features

• Lighter and more compact than conventional designs
• Prevents water hammer and reverse flow in HVAC applications
• Sizes: 2" – 12" (50 ‒ 300mm)
• EPDM seat is bonded to the body for leak tight sealing
