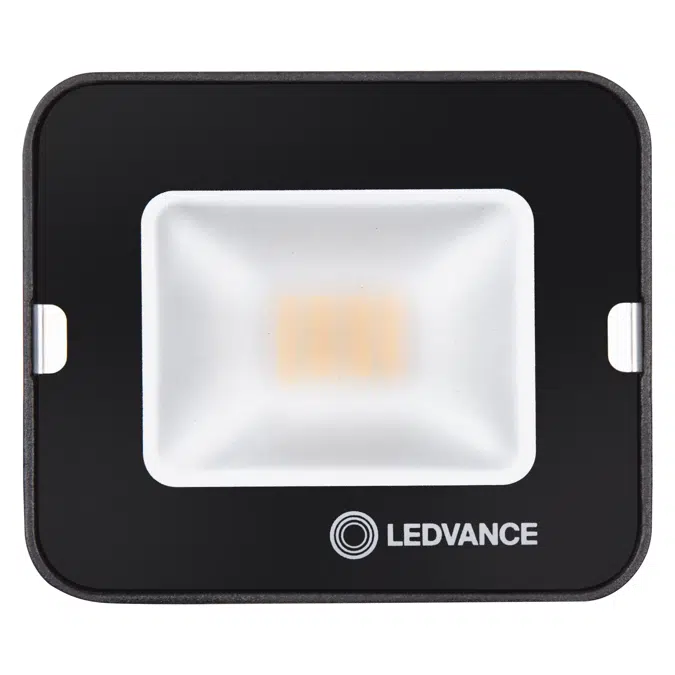

FLOODLIGHT COMPACT 10W
Floodlight with up to 1000 lm light output.

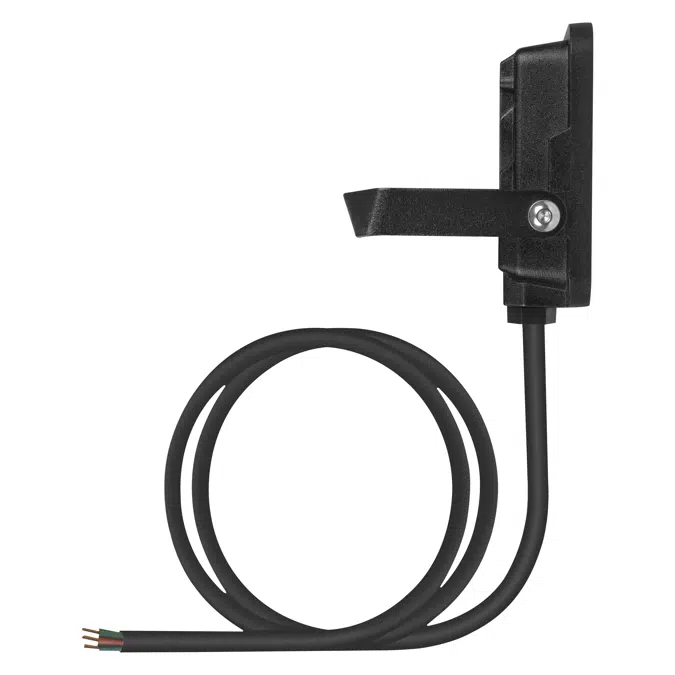

Product features Reflector-based, symmetric light distribution with 100° x 100° beam angle.Mounting bracket with 30° angle and wide rotation area.Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires.
Product benefits Robust, yet light and compact design.Safe and very uniform illumination, due to frosted and tempered glass diffuser.No upper light output ratio (ULOR 0%) when mounted at 0° tilt.Energy savings of up to 90 % compared to halogen lamp floodlights.3 years guarantee.
Areas of application Replacement for floodlights with halogen lamps.Outdoor use (IP65).Public areas.Building facades.Gardens, balconies and other outdoor areas.Construction areas.
FLOODLIGHT COMPACT 20W
Floodlight with up to 2000 lm light output.
Product features Reflector-based, symmetric light distribution with 100° x 100° beam angle.Mounting bracket with 30° angle and wide rotation area.Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires.
Product benefits Robust, yet light and compact design.Safe and very uniform illumination, due to frosted and tempered glass diffuser.No upper light output ratio (ULOR 0%) when mounted at 0° tilt.Energy savings of up to 90 % compared to halogen lamp floodlights.3 years guarantee.
Areas of application Replacement for floodlights with halogen lamps.Outdoor use (IP65).Public areas.Building facades.Gardens, balconies and other outdoor areas.Construction areas.
FLOODLIGHT COMPACT 50W
Floodlight with up to 5000 lm light output.
Product features Reflector-based, symmetric light distribution with 100° x 100° beam angle.Mounting bracket with 30° angle and wide rotation area.Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires.
Product benefits Robust, yet light and compact design.Safe and very uniform illumination, due to frosted and tempered glass diffuser.No upper light output ratio (ULOR 0%) when mounted at 0° tilt.Energy savings of up to 90 % compared to halogen lamp floodlights.3 years guarantee.
Areas of application Replacement for floodlights with halogen lamps.Outdoor use (IP65).Public areas.Building facades.Gardens, balconies and other outdoor areas.Construction areas.
FLOODLIGHT COMPACT 90W
Floodlight with up to 9000 lm light output.
Product features Reflector-based, symmetric light distribution with 100° x 100° beam angle.
Surge protection up to 4 kV (L/N-PE), 2 kV (L-N).Mounting bracket with 30° angle and wide rotation area.Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires.Breather membrane to optimize air exchange, without compromising IP protection.
Product benefits Robust, yet light and compact design.Safe and very uniform illumination, due to frosted and tempered glass diffuser.No upper light output ratio (ULOR 0%) when mounted at 0° tilt.Energy savings of up to 90 % compared to halogen lamp floodlights.3 years guarantee.
Areas of application Replacement for floodlights with halogen lamps.Outdoor use (IP65).Public areas.Building facades.Gardens, balconies and other outdoor areas.Construction areas.
FLOODLIGHT COMPACT 135W
Floodlight with up to 13500 lm light output.
Product features Reflector-based, symmetric light distribution with 100° x 100° beam angle.
Surge protection up to 4 kV (L/N-PE), 2 kV (L-N).Mounting bracket with 30° angle and wide rotation area.Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires.Breather membrane to optimize air exchange, without compromising IP protection.
Product benefits Robust, yet light and compact design.Safe and very uniform illumination, due to frosted and tempered glass diffuser.No upper light output ratio (ULOR 0%) when mounted at 0° tilt.Energy savings of up to 90 % compared to halogen lamp floodlights.3 years guarantee.
Areas of application Replacement for floodlights with halogen lamps.Outdoor use (IP65).Public areas.Building facades.Gardens, balconies and other outdoor areas.Construction areas.
FLOODLIGHT COMPACT 180W
Floodlight with up to 18000 lm light output.
Product features Reflector-based, symmetric light distribution with 100° x 100° beam angle.
Surge protection up to 4 kV (L/N-PE), 2 kV (L-N).Mounting bracket with 30° angle and wide rotation area.Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires.Breather membrane to optimize air exchange, without compromising IP protection.
Product benefits Robust, yet light and compact design.Safe and very uniform illumination, due to frosted and tempered glass diffuser.No upper light output ratio (ULOR 0%) when mounted at 0° tilt.Energy savings of up to 90 % compared to halogen lamp floodlights.3 years guarantee.
Areas of application Replacement for floodlights with halogen lamps.Outdoor use (IP65).Public areas.Building facades.Gardens, balconies and other outdoor areas.Construction areas.
For guarantee see www.ledvance.com/guarantee
For this product family multiple variants might exist with specific properties!
Please refer to the specification text where each product url is listed.
Older generations of a product family can be accessed at our website https://www.ledvance.com.
You need to use Revit 2021 or higher to use our Revit files.
