AXORFollow

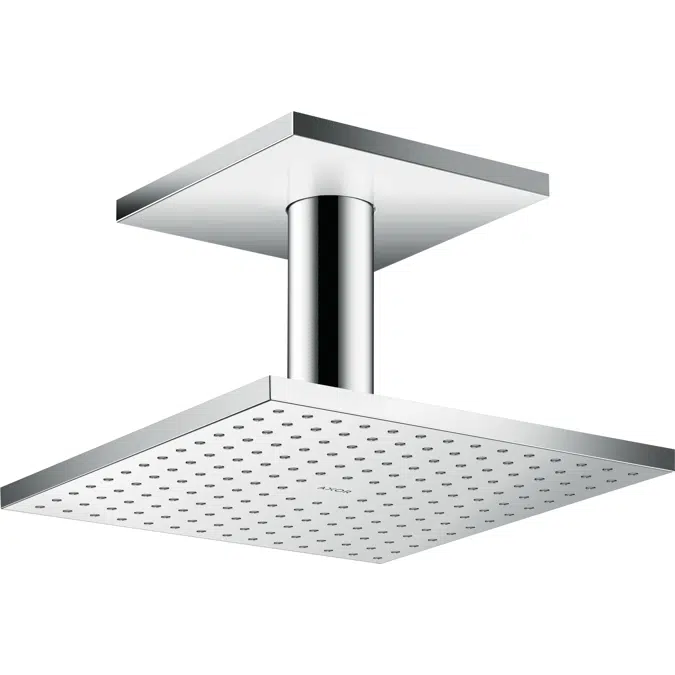

AXOR ShowerSolutions Overhead shower 250/250 2jet 2.5 GPM with ceiling connection

Specification

Specification

• Surfaces: - 35312001 Chrome - 35312341 Brushed Black Chrome - 35312251 Brushed Gold Optic - 35312331 Polished Black Chrome - 35312991 Polished Gold Optic - 35312821 Brushed Nickel Specification: • consists of: overhead shower, ceiling connector, green diverter • shower head size: 250 x 250 mm • spray type: PowderRain, Intense PowderRain • adjustment with shift on thermostat • dynamic spray nozzles move out while using • material spray disc: metal • brass ceilling connector • ceiling connection length: 100 mm • maximum flow rate at 3 bar: 9,5 l/min • overhead shower removable for cleaning • ServiceCard with sieve can be removed without tools for cleaning porpose • installation: ceiling • connection dimension: DN15 • suitable for continous flow water heaters

Technical specification

Technical specification

• Unique ref.35312USA
• Product familyAXOR ShowerSolutions
• Product groupOverhead showers
• TypeObject (single object)
• Date of publishing2022-09-28
• Edition number1

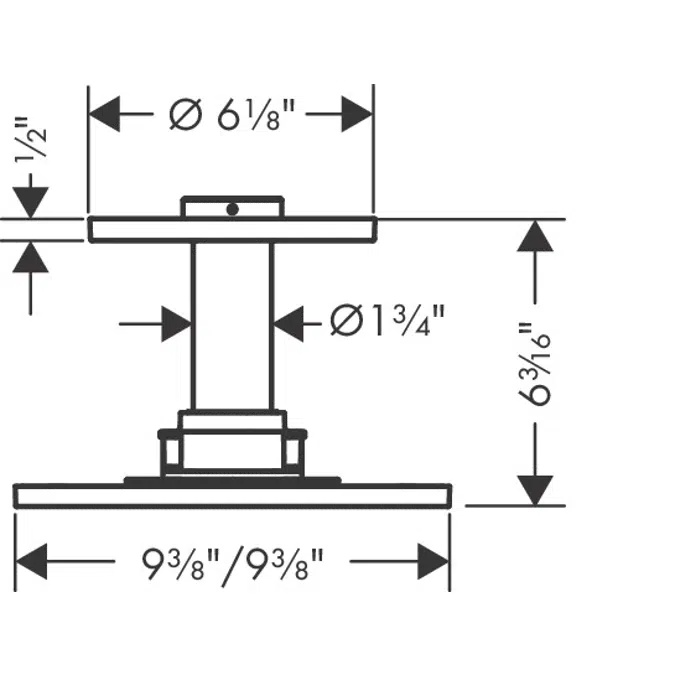

• Height (mm)157
• Width (mm)250
• Depth (mm)250

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--35312001

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)4.5

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
