ASAŞ Curtain Wall RT50
ASAŞ Curtain Wall RT50
ASAŞ Curtain Wall RT50
    ASAŞ

    ASAŞ Curtain Wall RT50

    The RT50 Façade System is an economical façade solution that minimizes waste by allowing the same profiles to be used as both horizontal and vertical supports. It offers a continuous drainage solution with its specially designed accessories. It is suitable for use in both low-rise and high-rise buildings. When used as a structural silicone façade, it provides a seamless glass appearance and meets aesthetic expectations. The system allows for outward-opening concealed vents and is also suitable for use as a semi-capped or fully capped façade system.

    Specification
    • Technical Properties

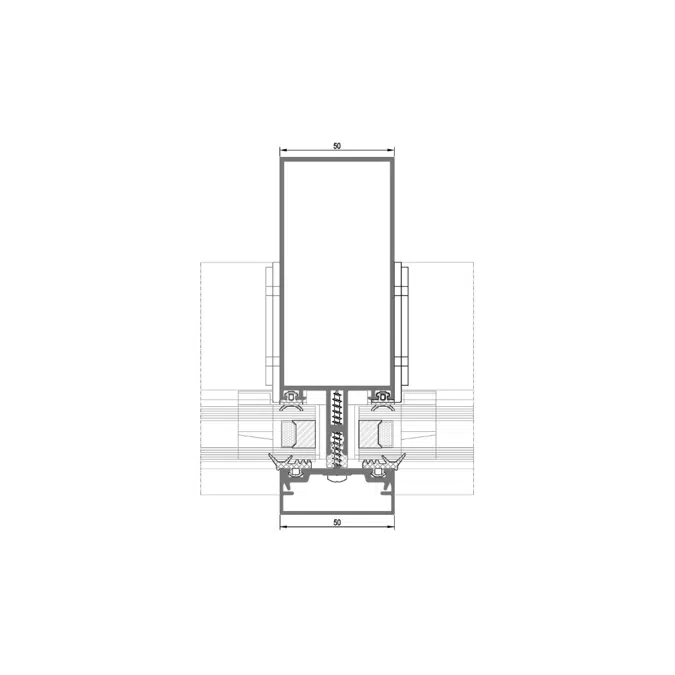

      Profile Width: 50 mm

      Mullion Depths: min. 30 – max. 146 mm

      Transom Depths: min. 30 – max. 146 mm

      Wall Thickness: 1,5 / 1,8 mm

      Max. Glass Thickness: 42 mm

      Thermal Insulation Bar: 14,8 mm

      Application Options

      Facade With Cap

      Structural Glazing

      Two Side System

      Outward Opening Hidden Vent

      All colors are applicable for electrostatic powder painting and anodizing surface processes.

    Technical specification
    • Unique ref.asas-curtain-wall-rt50
    • TypeObject (single object)
    • Date of publishing2025-05-06
    • Edition number1
    Related
    • Material mainAluminium
    • Material secondaryGlass
    • Designed inTürkiye
    • Manufactured inTürkiye
    Classification
    • BIMobject CategoryWalls - Curtain Walls
