P3TTL000 - JVP 4x4 Raised Access Floor System

Specifikation

Specifikation

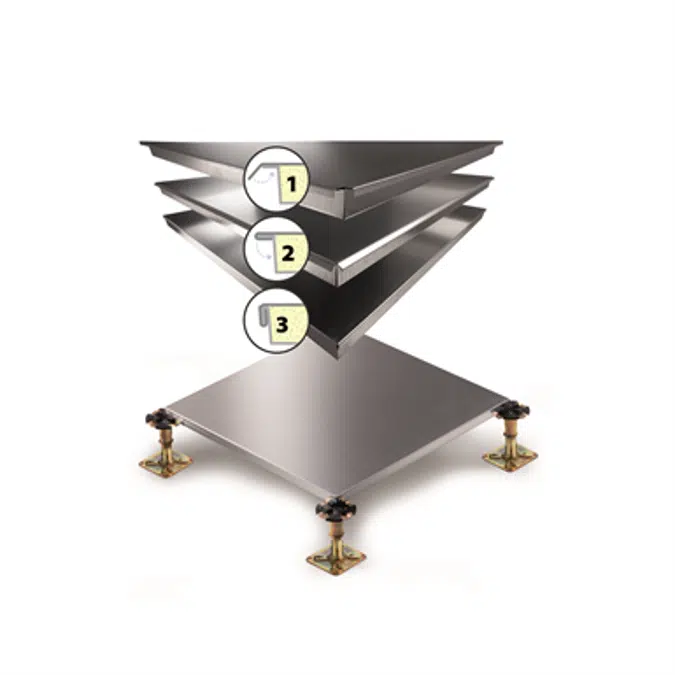

• Tech. raised access floor panels for internal applications, fully accessible Dimension of panels 600x600mm x23mm thickness Fully steel encapsulated inert core JVP 4x4 panels, type P3TTL000, mm 600x600x23 Consisting of: Knauf Integral calcium sulphate and recycled paper fibre agglomerate, high density as 1200 kg/m3 core, bonded by means of water based PVA glue onto steel galvanized trays. Hot dipped zinc galvanised 0,35/0,40 mm thick trays are four time curled together on top part of panel, forming a mechanical locked perimeter edge reinforcement to enhance load bearing capacity preventing shock damage and de-lamination. Finished panels are provided with no.4 notches on bottom surface as positive location points onto PPC pedestals gasket. The bare steel surface of panels is suitable both for loose-laid or bonded finishing of textile, resilient and stone coverings. JVP Steel galvanised pedestals type: JSE Steel galvanised pedestals for access floor system provided with height adjustment, consisting of: Base+tube: Square base plate 100x100mm and 2,0mm thk, mechanically fixed by double riveting onto 25x1,5mm tube with reducer internally threaded. Head+threaded rod: Circular head plate of 2,5mm thickness and 90mm diameter, mechanically rebated onto 16mm diameter threaded rod and embossed on bottom head side Head gasket: Plastic PPC head gasket provided with cruciform top shape. The components are assembled together with M20x6mm self-blocking nut, which allows the pedestal’s adjustment. The system will be able to comply the following performances: - load bearing capacity as per PSA MOB PF2 PS SPU: - class of max loading Medium Grade - load bearing capacity as per UNI EN 12825: - class of max loading 2 - class of deflection A - class of tolerances 1 - fire performances UNI EN 13501-1 e UNI EN 13501-2: - class for fire reaction A1fl - class for fire resistance REI30r JVP raised floor system fully accessible “JVP 4X4” could be positively considered to contribute on getting the following LEED® credits. • Credit MRc2 - Management for the Building wastages • Credit MRc3 - Reusing of the Materials • Credit MRc4 - Contents of recycled Materials • Credit MRc5 - Materials extracted, worked and produced to limited distance • Credit MRc7 - Certified wooden • Credit QLc4.3 - Low emission wooden floors • Credit QLc4.4 - Low emission wooden and vegetable particle products

Teknisk specifikation

Teknisk specifikation

• Unik ref.P3TTL000
• ProduktfamilieRaised access floor
• ProduktgruppePanels
• TypeObjekt (enkelt objekt)
• Udgivelsesdato2017-07-04
• Udgavenummer1
• Højde (mm)600
• Bredde (mm)600
• Dybde (mm)23

Links

Links

• Produkt-URLhttp://www.jvph.eu/en/prodotti.html
• Monteringsvejledninghttp://www.jvph.eu/en/prodotti.html
• Instruktionsvideohttps://www.youtube.com/watch?v=2VjzBvjA_rI
• Produktcertificeringhttp://www.jvph.eu/en/what-certification.html
• Teknisk beskrivelsehttp://www.jvph.eu/en/prodotti.html

Relateret

Relateret

• Materiale primærtGalvaniseret stål
• Materiale sekundærtGipssten
• Designet iItalien
• Fremstillet iItalien
• Nettovægt (kg)12.55

Klassifikation

Klassifikation

• BIMobject-kategoriGulvbelægning - Raised Access
• OmniClass-nummer23-15 17 21
• OmniClass-betegnelseAccess Flooring Components
